Classic 6" Daylighter Halogen feature powerful 100w H3 Halogen Bulbs in Spot pattern inside a black powder coated housing, competition tested for over 40 years. Includes: Complete relay wiring harness, switch kit, and light covers.
| Attributes | |
| ASIN | B0002CO9NA |
| Add-On | N/A, N/A |
| Amp Draw | 8.3A, 8.3A, 8.3A |
| Beam Distance (Meters) | Spot- 886m, Spot- 886m, Spot- 886m |
| Beam Pattern | Spot, Spot, Spot |
| Bulb Technology | Halogen |
| Bulb Type | Halogen |
| California Proposition 65 | No |
| Candela | Spot- 196,200 cd, Spot- 196,200 Cd, Spot- 196,200 Cd |
| Color Temperature | 4000K, 4000K |
| Country of Origin (Primary) | TW |
| GTIN | 00084709002381 |
| Harmonized Tariff Code (Schedule B) | 8512202000 |
| Hazardous Material Code | N |
| Housing Color | Black |
| Housing Shape | Round |
| IP RATING | IP68, IP68, IP68 |
| LED Color | N/A |
| LED Number | N/A |
| LED Quantity | N/A |
| Life Cycle Status Code | Available to Order |
| Light Temp | 4000K |
| Lumens | 2452, 2452, 2452 |
| Lux | 1962, 1962, 1962 |
| Lux at 10 Meters | Spot- 1,962 lx |
| Lux at 10 Meters | Spot 1,962 lx, Spot- 1,962 lx, Spot- 1,962 lx |
| NAFTA Preference Criterion Code | B |
| Parts Included | (2) 100W 6 in Daylighter Halogen lights, Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch , (2) Protective Light Covers, (2) 100W 6 in Daylighter Halogen lights, Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch , (2) Protective Light Covers, (2) 100W 6 in Daylighter Halogen lights, Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch , (2) Protective Light Covers |

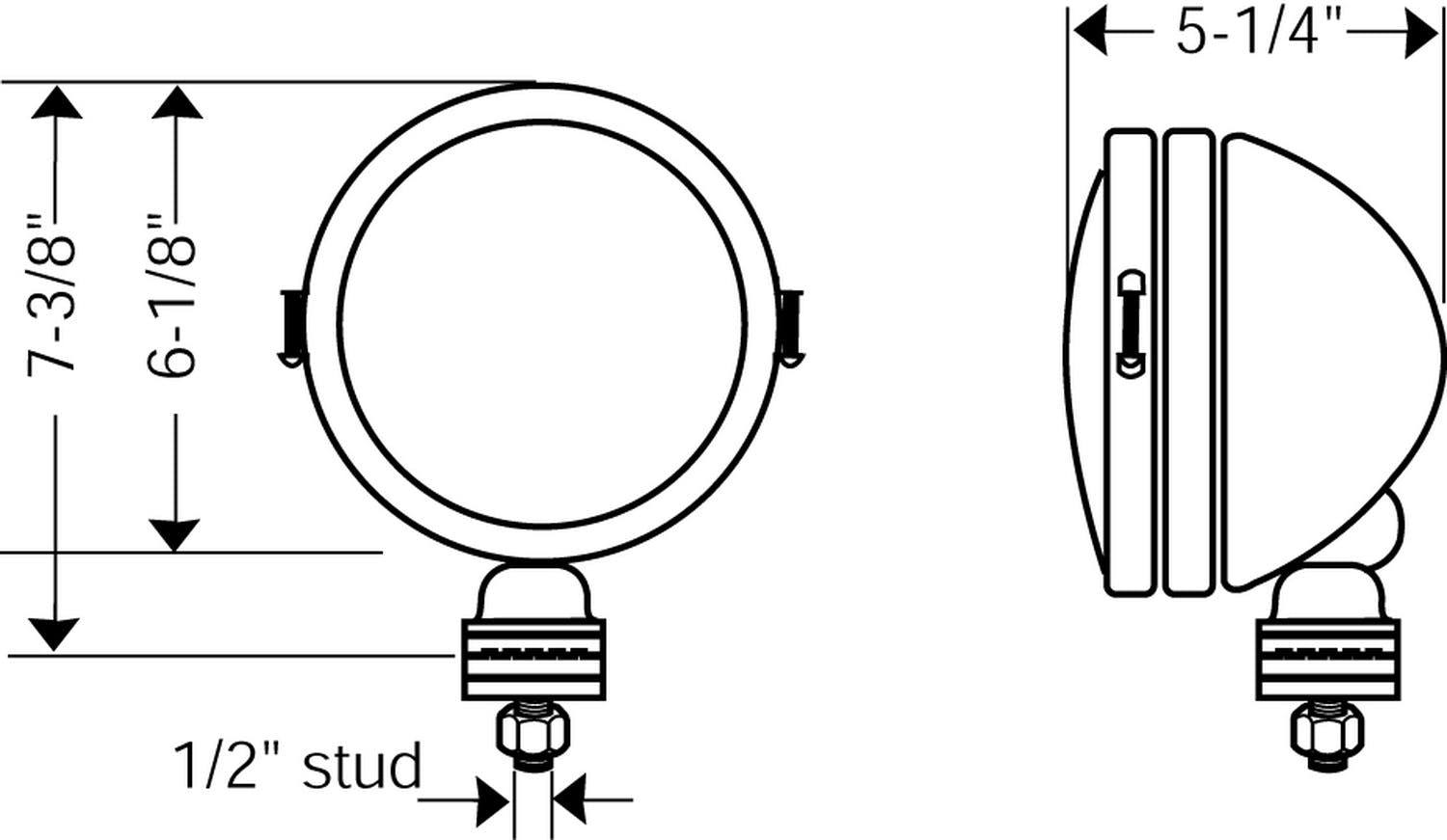

| Product Dimensions | W 6.22 in x H 8.42 in x D 5.38 in, W 6.22 in x H 8.42 in x D 5.38 in, W 6.22 in x H 8.42 in x D 5.38 in |
| Raw Lumens | 2,452 lm per light, 2,452 lm per light, 2,452 lm per light |
| SDR Required Flag | N |
| Voltage | 9V-32V, 9V-32V, 9V-32V |
| Warranty Note | This item has exceptions to the warranty period. Please visit kchilites.com/warranty for details and exceptions. |
| Warranty Time | 23 |
| Wattage | 100W per light |
| Wattage Per Light | 100W per light, 100W per light, 100W per light |
KC Hilites 238 KC Daylighter Halogen 6in Spot 2-Light System Universal
Product Information
- Brand: KC Hilites
- Product Number: 238
