Cherokee XJ & Comanche MJ, 1984-2001, Steering Brace System - Driver Side Only

---

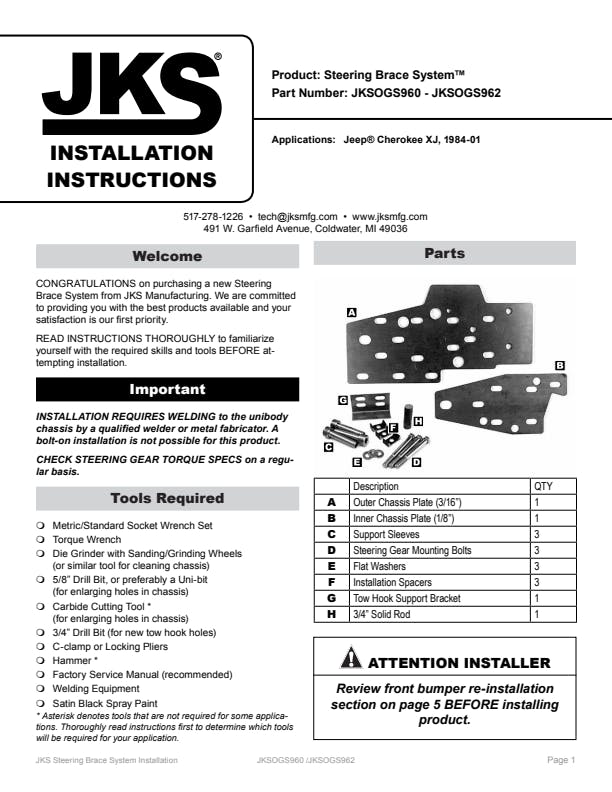

Add structural reinforcement to your Jeep Cherokee XJ with JKS Unibody and Steering Reinforcement Braces. This driver's side-only weld-on system includes inner and outer chassis reinforcement plates; steering box brace, support sleeve, tow hook support bracket and hardware. The unibody chassis on Jeep Cherokee XJ models is constructed of multiple sheet metal layers that are formed and spot welded together. When subjected to off-road torsional forces, the chassis develops small fatigue fractures in high stress locations. The power steering gear mount is particularly vulnerable, due to the tremendous leverage required to control large tires in off-road conditions. Plates attach directly to inside and outside of chassis rail. Heavy gauge steel construction. Bare metal. Weld-on.

• Chassis plates reinforce most vulnerable section of chassis to prevent failure of vital steering function
• Provides additional steering gear support necessary for large tires and off-road conditions
• Ensures proper load distribution during winching and recovery operation particularly important on unibody vehicles
• Improves integrity of winch and bumper mounts, and strengthens and repositions OE tow hook provision for improved off-road clearance
• Prevents the need for crude or expensive repair of steering gear mount common with failure on the trail
• Replaces corrosive and failure prone steering gear hardware with quality, long-lasting materials

---

Application Summary:

Year	Make/Model
1984-2001	Jeep Cherokee
1986-1992	Jeep Comanche
