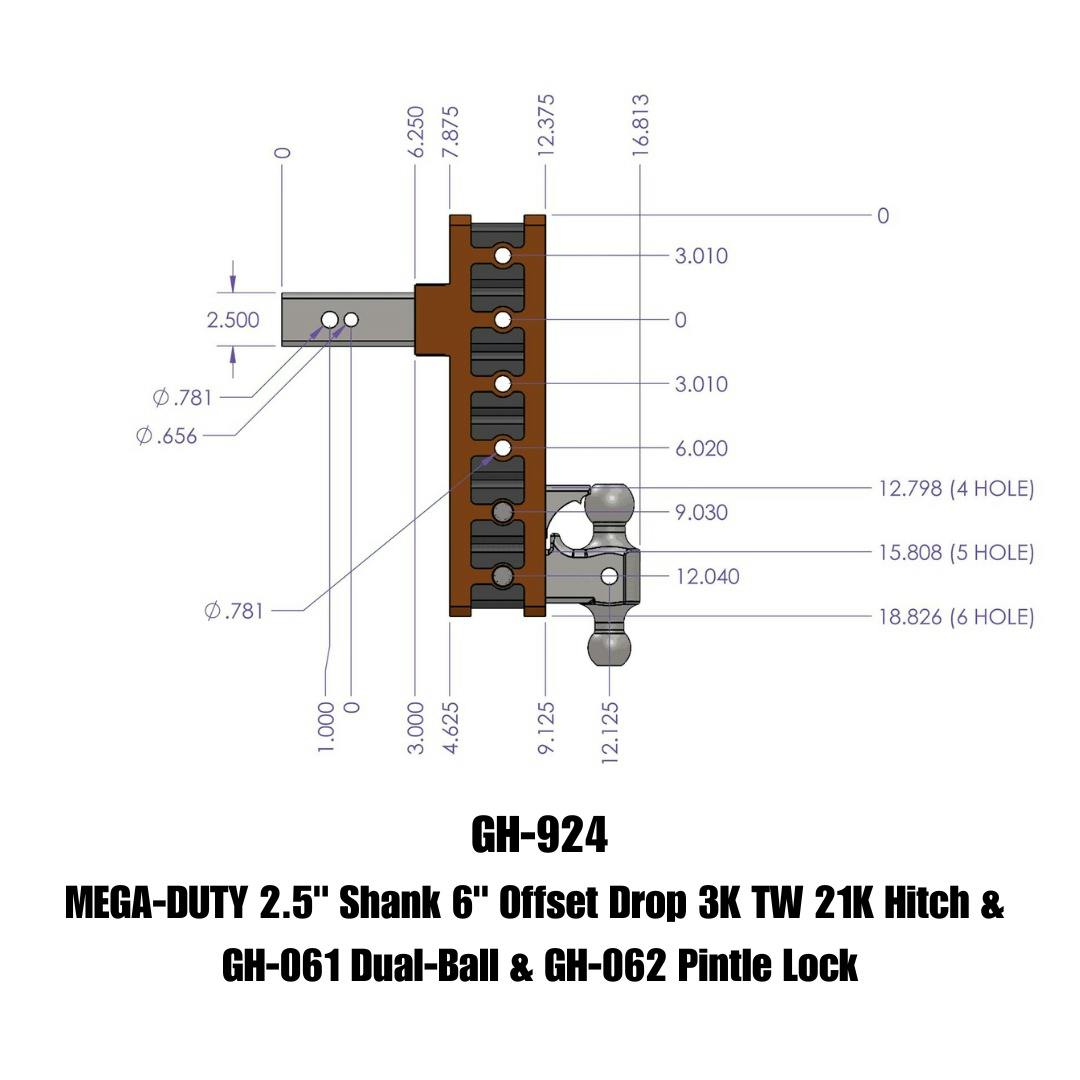

MEGA-DUTY 2.5" Offset Shank 3" Rise, 6" Drop 3K TW 21K Hitch & GH-061 Dual-Ball & GH-062 Pintle Lock
GEN-Y's Mega-Duty Adjustable Drop Hitches start at 10,000 LB towing capacity and go up to 32,000 LB towing capacity. There are multiple drop options as well depending on your trailer towing needs.
- Fully Adjustable
- Dual-Ball & Pintle Lock
- 3K Tongue Weight
- 21K Towing Capacity
Application Summary:
| Year |
Make/Model |
| Fits |
2.5 Receiver |
| Attributes |
| Add-On |
N/A |
| Adjustable |
Yes |
| Ball Diameter (in) |
2, 2-5/16 Inch |
| Ball Diameter (mm) |
50.8, 63.5 |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Class Rating |
5, 5 |
| Color |
Silver Vein, Silver Vein |
| Country of Origin (Primary) |
US |
| Drop (in) |
6 |
| Drop (mm) |
152.4 |
| Drop Measurement |
6, 6 |
| Drop/Raise Range |
3" / 6" |
| Dual Ball Included |
Yes |
| Finish |
Powder Coat |
| Full Pallet Qty |
27 |
| Full Pallet Quantity |
27 |
| GTIN |
00810006120806 |
| Gross Towing Weight |
21000 lbs, 21000 |
| Harmonized Tariff Code (Schedule B) |
8708990000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
Steel, Steel |
| Maximum Tongue Weight |
3,000 LBS |
| NAFTA Preference Criterion Code |
B |
| Number Of Hitch Balls Included |
2 |
| Optimal Tongue Weight Range |
N/A |
| Overall Length (in) |
10 Inch |
| Pintle Lock Included |
Yes |
| Qty of Balls included |
2 |
| Qty of Pins included |
2 |
| Quantity of Balls included |
2 |
| Quantity of Pins included |
2 |
| Receiver Size (in) |
2.5 |
| Rise (in) |
3 |
| Rise Measurement |
3, 3 |
| SDR Required Flag |
N |
| Shank Size |
2.5", 2.5, 2.5 |
| Shank Size (in) |
2.5 |
| Shank Size (mm) |
63.5 |
| Ship Method |
Ground |
| Stabilizer Kit Included |
No |
| Tongue Weight |
3000, 3000 |
| Towing Capacity |
10,000 - 32,000 lbs., 21000 |
| Versa Ball Included |
Yes |
