CURT 57008 7-Foot Vehicle-Side Truck Bed 7-Pin Trailer Wiring Harness Extension; Select Ford F-150; F-250; F-350 Super Duty

---

There is nothing like the luxury and power that go along with heavy-duty towing. 5th wheel RVs offer a deluxe, home-away-from-home experience unlike any other, while gooseneck trailers possess a strength that far surpasses most other trailer options. As with any trailer, however, 5th wheels and goosenecks must be equipped with the proper lighting and electrical systems, and tend to require even more complex connectors than a standard receiver-type trailer setup. Make things simple with a CURT 5th wheel / gooseneck extension harness. These wiring harnesses are designed to put an extra connector socket in the bed of your pickup truck while still retaining power to the rear connector socket mounted on your bumper. This is done by plugging into the back of the existing original equipment (OEM) harness and routing through the body of the truck to a hole in the truck bed, providing a connector that is ready to accommodate your 5th wheel or gooseneck trailer. This CURT extension harness is designed to work with 7-way RV blade connectors and comes in a length of 7. It is compatible with certain years of the Ford F-150, F-250 Super Duty and F-350 Super Duty (see application to verify fitment). For trucks with an aluminum body, galvanic corrosion can become a problem when installing vehicle-to-trailer wiring without the appropriate protection. This kit includes isolators that allow you to install the wiring harness extension in an aluminum truck bed without having to worry about ruining the trucks finish. It includes four bolts for secure mounting and four plastic well nuts to isolate the fasteners from all aluminum surfaces.

• Routes A 7-Way Into Truck Bed While Retaining Use Of Rear Socket
• Simple Plug-And-Play Design Eliminates The Need For Splicing
• Allows For Easy Connection Of 5Th Wheel Or Gooseneck Wiring

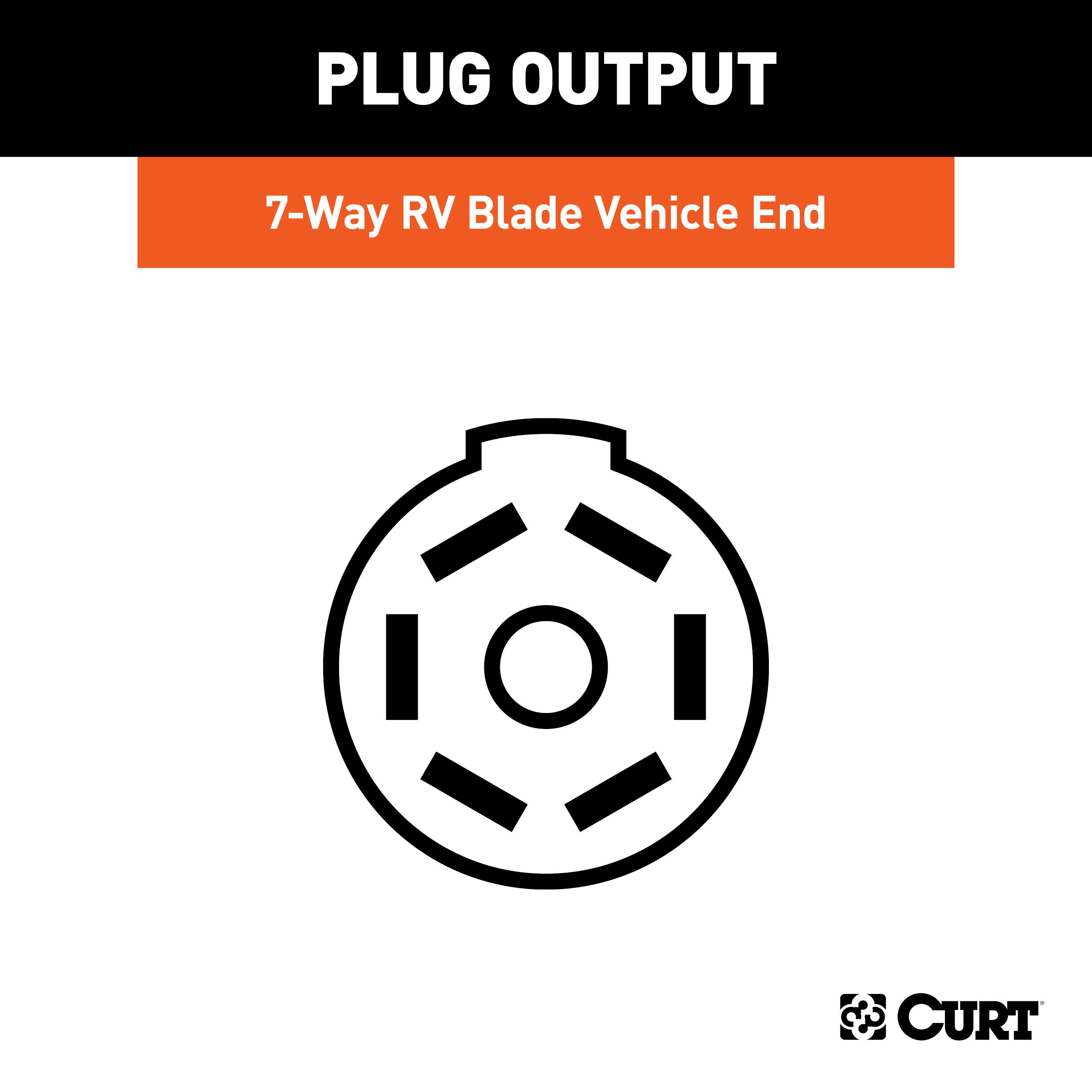

• 7-Way Connects Tail Brake Reverse Turn Signals Brakes

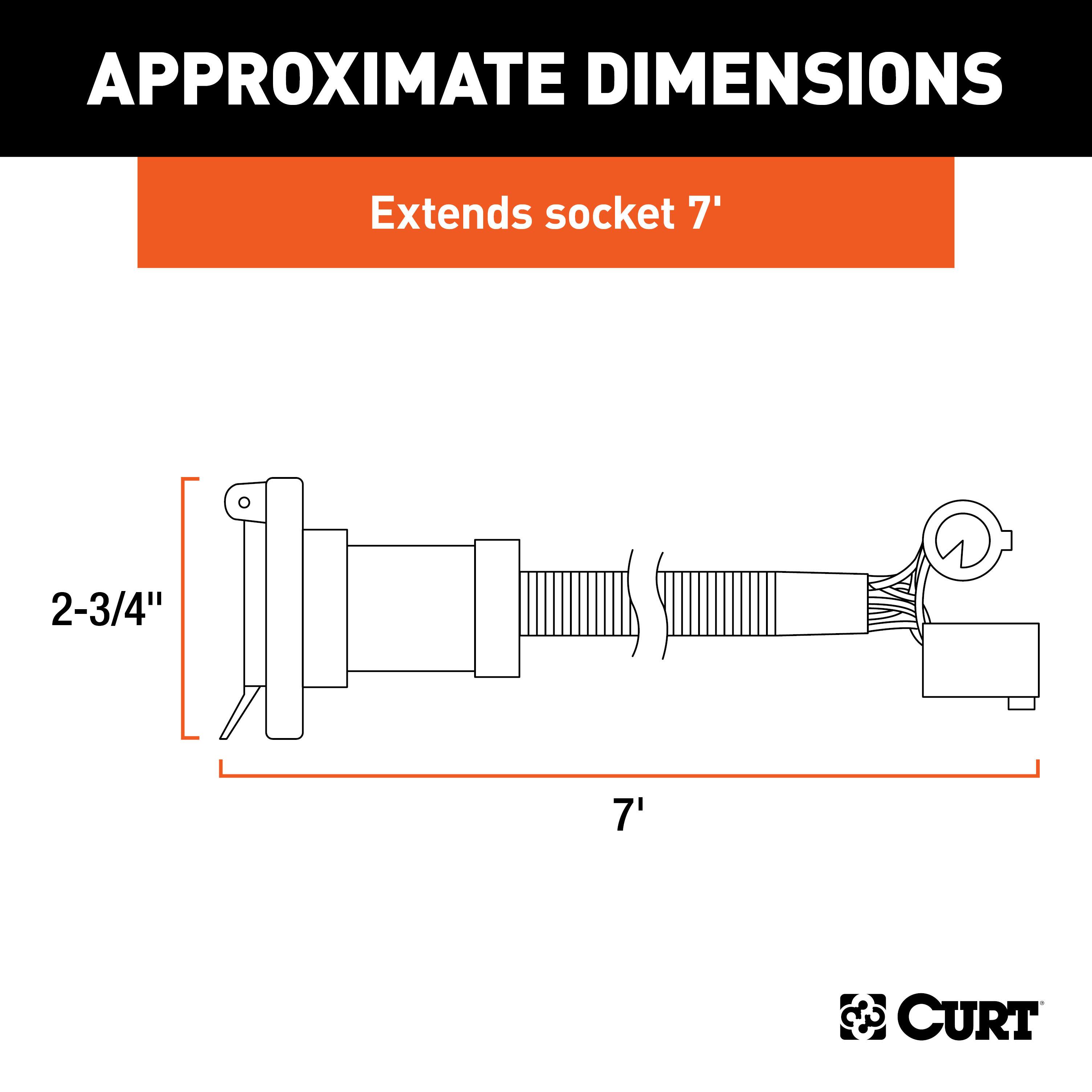

• 7 ft. Extension w/Right-Angle Plug For Easy Installation
• Spring-Loaded Dust Cover Keeps Connector Clean When Not In Use
• Slit Loom Keeps Wires Contained And Well Protected

---

Information:

7' Custom Wiring Extension Harness (Adds 7-Way RV Blade to Truck Bed, Packaged); Routes a 7-way RV blade socket into truck bed while retaining use of rear socket; Simple plug-and-play design eliminates the need for cutting or splicing; Allows for easy connection of 5th wheel or gooseneck wiring; 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power; 7' extension with right-angle plug for easy installation; Neoprene well nuts isolate steel bolts from aluminum surfaces; Spring-loaded dust cover keeps connector clean when not in use; Slit loom keeps wires contained and well protected

---

Application Summary:

Year	Make/Model
2015-2025	Ford F-150
2017-2025	Ford F-250 Super Duty
2017-2019	Ford F-350 Super Duty
2021-2025	Ford F-350 Super Duty
2020-2025	Ford F-450 Super Duty
