CURT 56236 Multi-Function Splice-in Tail Light Converter; 4-Pin Wiring Harness

---

Rain, road grime and salt can deal a vicious blow to your trailer wiring, and it takes electrical components with an extra-thick shell to stand up to the elements. The CURT multi-function electrical converter is an advanced taillight converter that offers the ultimate in vehicle compatibility and weather resistance, giving you a reliable wiring connection any season of the year. The potted design seals the internal electrical components in a watertight enclosure and is filled with a solid compound to protect against impacts, vibrations and moisture for long-lasting use, even on the exterior of the vehicle. The converter also features our advanced surface mount technology (SMT), using smaller components mounted directly to the surface of the circuit board. This produces lower resistance, reduced heat generation, longer life cycles and higher reliability. The CURT multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights. It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring. The converter is controlled using a microcontroller that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits. It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation. The CURT multi-function taillight converter is a heavy-duty electrical converter for virtually any vehicle-trailer combination. It comes with color-coded wires and an easy-to-read wiring guide, as well as a dust cover to protect the 4-way flat connector. This package also includes four snap locks for faster, more secure splicing. A powered converter wiring kit #55152 is also required for installation.

• Converts 2-Wire 3-Wire Or Pwm St System To 2-Wire Trailer Light

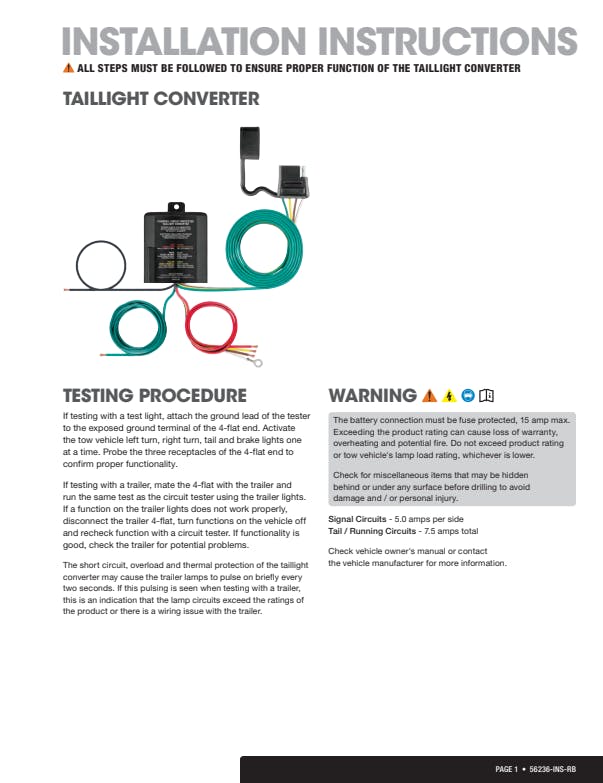

• Color-Coded Wires w/Wiring Guide For Easier Installation
• Dust Cover Included To Keep Connector Clean When Not In Use
• Made In USA
• Enclosure Significantly Increases Water And Vibration Resistance

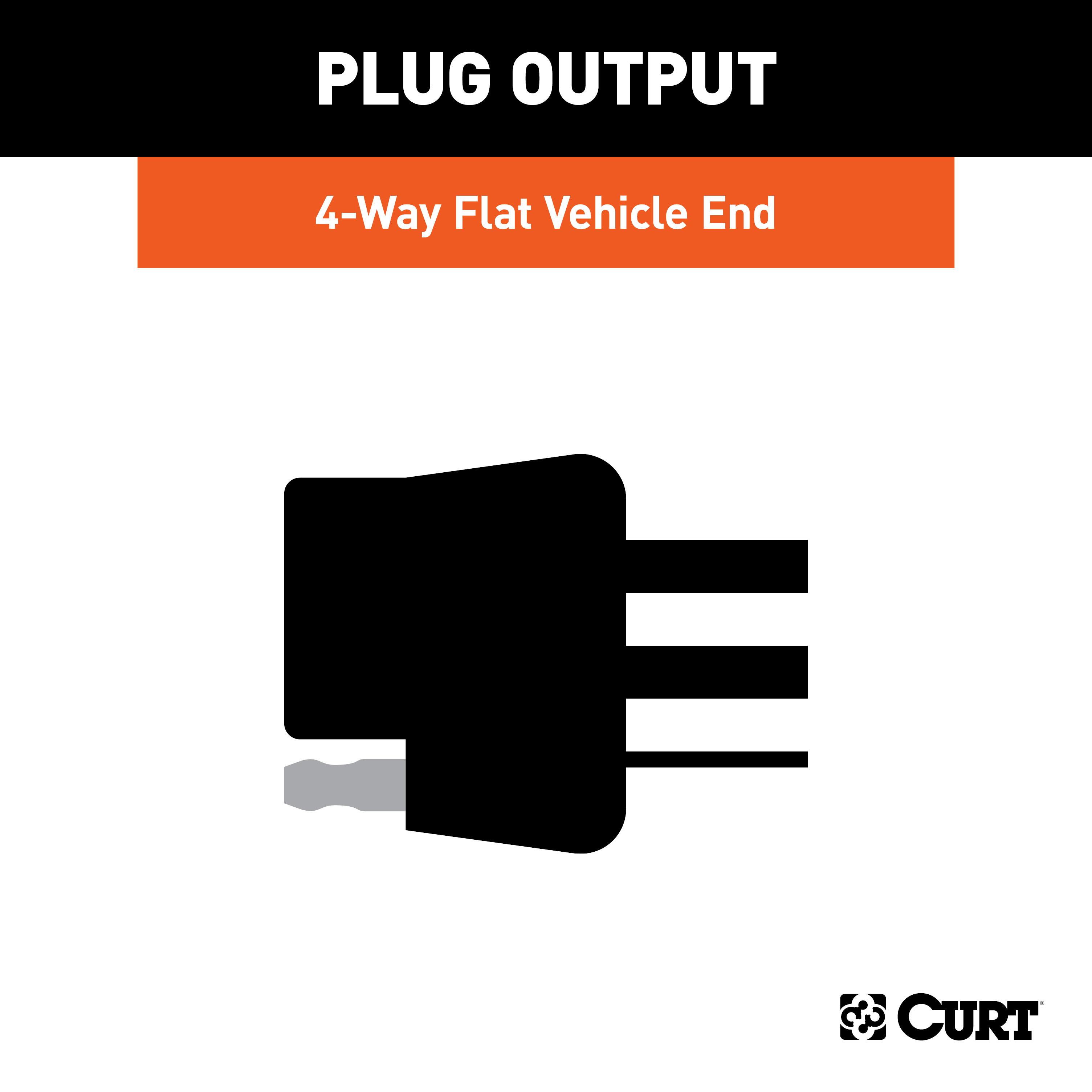

• 4-Way Flat Connects Tail Lights Brake Lights And Turn Signals
• Constructed w/Smt Circuitry For Better Performance And Durability
• Microcontroller Senses Current To Rapidly React To Overload
• Provides Improved Overload Short-Circuit And Thermal Protection
• Low-Voltage Operation Allows Function Down To Seven Volts

---

Information:

Multi-Function Taillight Converter; Converts 2-wire, 3-wire or PWM ST system to 2-wire trailer light wiring; Potted enclosure significantly increases water and vibration resistance; 4-way flat output connects tail lights, brake lights and turn signals; Constructed with SMT circuitry for better performance and durability; Microcontroller senses current to rapidly react to overload; Provides improved overload, short-circuit and thermal protection; Low-voltage operation allows function down to seven volts; Color-coded wires with wiring guide for easier installation; Snap locks included for fast, secure splicing; Dust cover included to keep connector clean when not in use

---

Application Summary:

Year	Make/Model
2009-2012	Audi A4
2002-2012	Audi A4 Quattro
2010-2016	Audi A5
2009-2012	Audi Q5
2018-2019	Audi Q5
2017-2019	Audi Q7
2009	Audi TT
2008	BMW 335i
2018	BMW X2
2018-2019	BMW X3
2020-2022	Cadillac CT5
2018-2019	Cadillac XTS
2013-2020	Chevrolet Spark
2014-2016	Chevrolet Spark EV
2010-2021	Freightliner Sprinter 2500
2010-2021	Freightliner Sprinter 3500
2017-2021	Honda Civic
2019	Kia Forte
2018	Kia Rio
2020-2022	Lincoln Corsair
2008-2010	Mercedes-Benz C300
2011	Mercedes-Benz C350
2017	Mercedes-Benz E300
2011	Mercedes-Benz E350
2014	Mercedes-Benz E350
2014	Mercedes-Benz GL450
2018	Mercedes-Benz GLE43 AMG
2010-2015	Mercedes-Benz GLK350
2007	Mercedes-Benz R350
2009	Mercedes-Benz S550
2010-2021	Mercedes-Benz Sprinter 2500
2010-2021	Mercedes-Benz Sprinter 3500
2002-2015	Mini Cooper
2013	Mini Cooper Countryman
2008-2009	Saturn Astra
2009	Volkswagen CC
2012	Volkswagen Eos
2010-2013	Volkswagen Golf
2018	Volkswagen Golf Alltrack
2015-2017	Volkswagen Golf SportWagen
2009-2010	Volkswagen GTI
2015	Volkswagen GTI
2021	Volkswagen ID.4
2008-2021	Volkswagen Jetta
2006-2009	Volkswagen Passat
2008	Volkswagen Rabbit
2009-2011	Volkswagen Tiguan
2011-2017	Volkswagen Touareg
