CURT 16621 A16 5th Wheel Slider Hitch with Base Rails for Short Bed Trucks; 16;000 lbs

---

The CURT A16 is designed to provide a surprisingly quiet ride while maintain superior towing power. It has a gross trailer weight capacity of 16,000 lbs. and can handle a vertical load up to 4,000 lbs. It comes with a three-position coupling indicator visible from your pickup truck cab, an extra wide head for easier coupling and high-strength interlocking die-cast jaws for a secure hold on your 5th wheel trailer. This 16K 5th wheel hitch excels in quiet 5th wheel towing. It uses a fully articulating torsion head, a cast yoke with poly-torsion inserts and interlocking jaws to create stability for your trailer and tow vehicle. These components also allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. Like the other CURT A-Series hitches, the A16 is coated with a durable carbide powder coat finish. It is tested in accordance with SAE J2638 for safety and includes a limited lifetime warranty. This A16 5th wheel hitch head comes attached to the CURT R16 slider and a set of 5th wheel rails to be mounted in your truck bed using a 5th wheel bracket kit. CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12 in. of displacement as well, unlike the more common 10 in., to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn.

• Ideal For Towing 5Th Wheel Trailers Up To 16000 Lbs.
• A16 High-Strength Interlocking Cast Jaws Fully Wrap The Kingpin
• Articulating Head For Controlled Coupling And Stable Towing
• Cast Yoke w/Poly-Torsion Inserts Suppresses Shock Loads And Noise
• Lockable Handle Self-Resets To The Ready-To-Couple Position
• Extra Wide Head Opening For Easier Coupling
• Fully Articulating Head For Controlled Coupling And Stable Towing
• Fast One-Pin Head Removal For Easy Disassembly

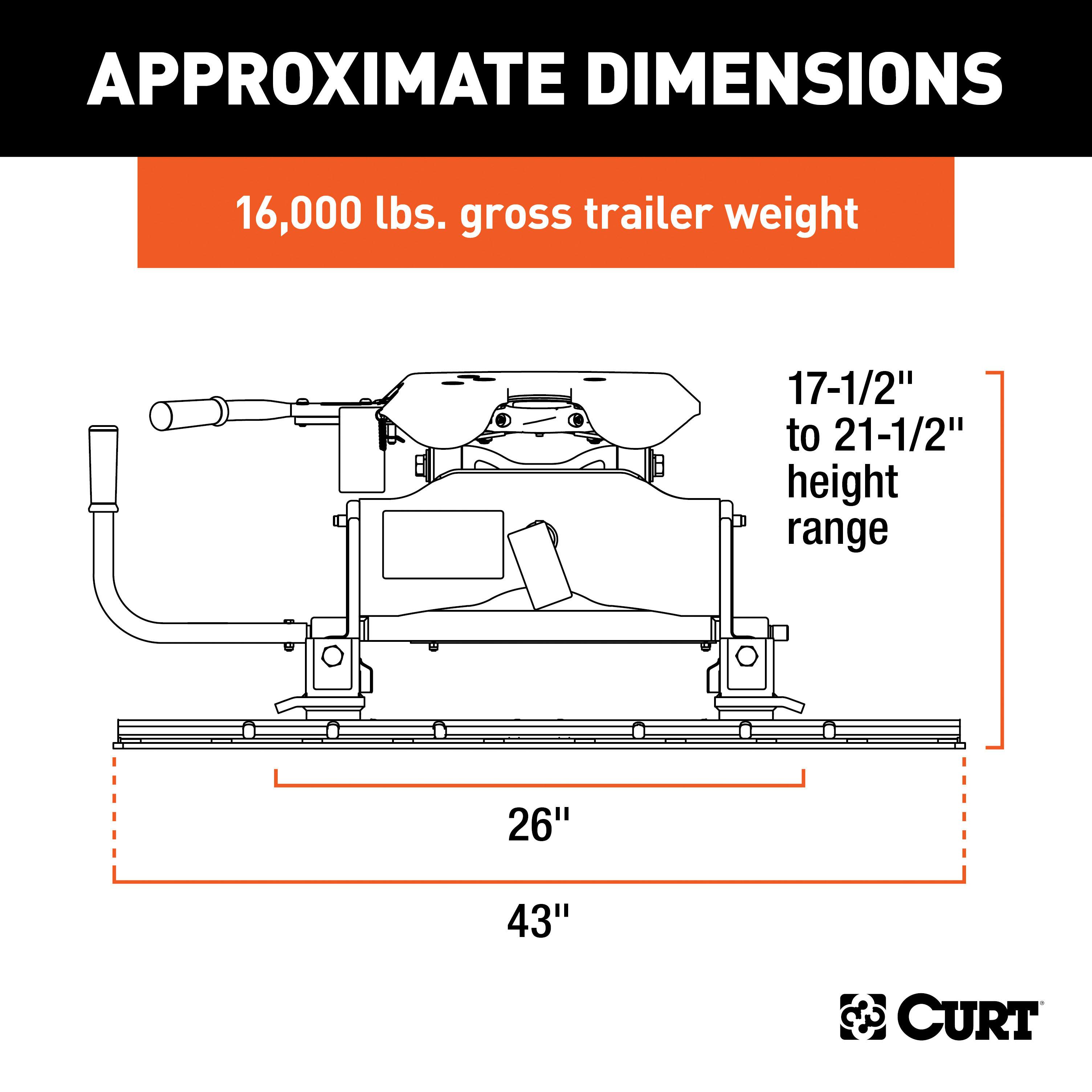

• Offers Four Height Adj. Positions To Adapt To Your Unique Truck
• Compatible w/Kingpin Extension Incl. Common Pivoting Pin Boxes
• R16 5Th Wheel Roller PN[16560] Provides 12 In. Of Travel
• Rolls On Wheels And Solid Rods To Be A True Rolling Unit

---

Information:

A16 Sliding 5th Wheel Hitch with Rails, 16,000 lbs.; Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise; Fully articulating torsion head for controlled coupling and stable towing; Lockable handle self-resets to the ready-to-couple position after uncoupling; High-strength, interlocking jaws fully wrap the kingpin to minimize noise; Extra wide head opening for easier coupling; Fast, one-pin head removal makes moving easy with smaller, lighter pieces; Three-position coupling indicator clearly shows coupling status; R16 5th wheel slider #16560 provides 12 of travel in the truck bed; Rolls on wheels and solid, non-binding rods to be a true rolling unit; Compatible with kingpin extension boxes, including common pivoting pin boxes; Offers three height adjustment positions to adapt to each unique truck bed; Includes a polyethylene lube plate to eliminate messy grease deposits; Tested for safety in accordance with SAE J2638; Protected by a highly durable carbide powder coat finish; Limited lifetime warranty (one-year finish, one-year parts); Patent# 8,827,298

---

Application Summary:

Year	Make/Model
CURT	16621 A16 5th Wheel Slider Hitch with Base Rails for Short Bed Trucks, 16,000 lbs
