CURT 16115 E16 5th Wheel Hitch; 16;000 lbs

---

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately).

• Designed To Tow 5Th Wheel Trailers Up To 16000 Lbs.
• Pivots On Dual Axles For 10 Degrees Of Lateral Movement
• Automatically Locks For Easy Secure Coupling
• Operates Using A Single Handle
• Mounts To All Industry-Standard Base Rails
• Features An Anti-Rattle Skid Plate

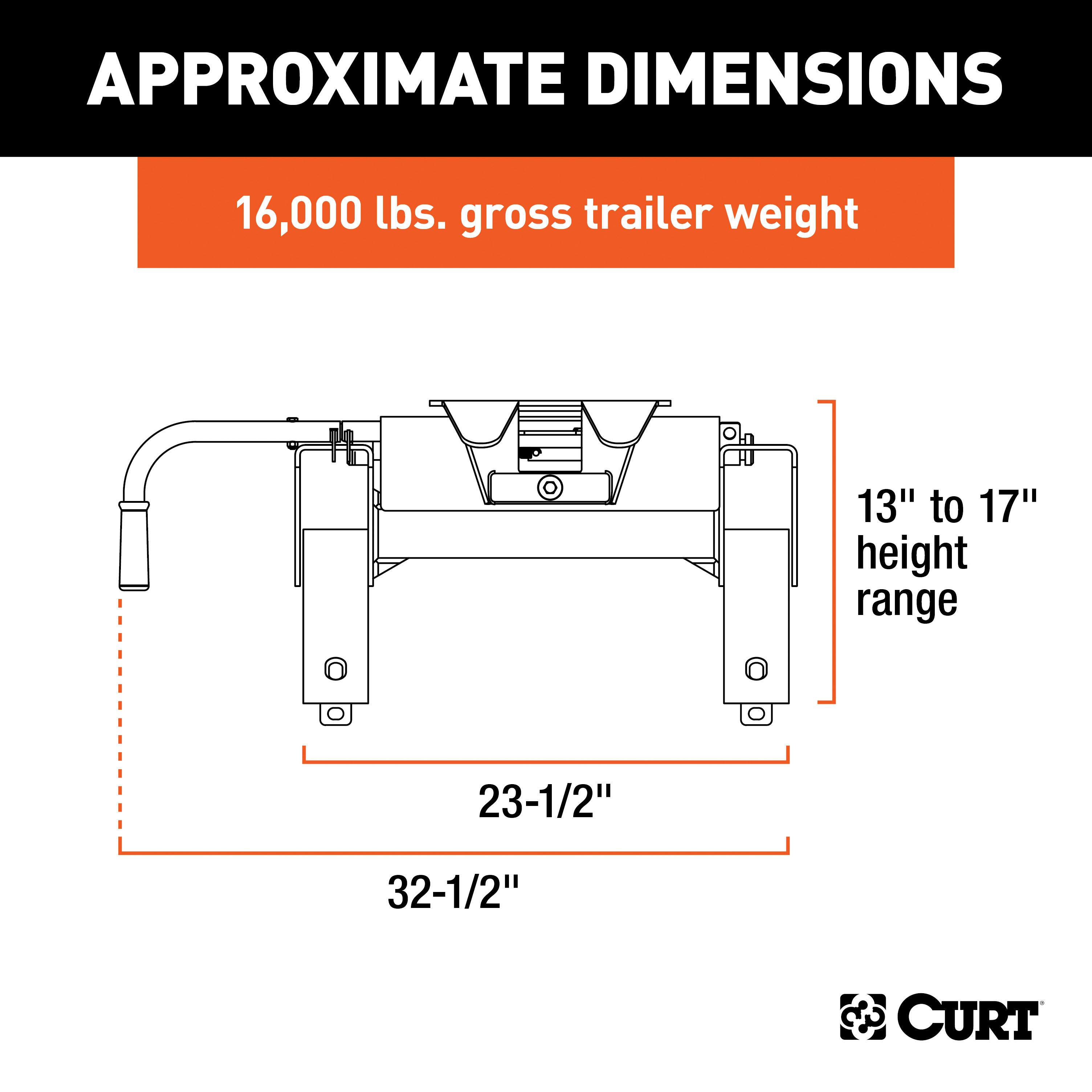

• Offers Four Height Adj. Positions To Adapt To Your Unique Truck
• Meets Proposed SEA J2638 Testing Standards
• Backed By A Five-Year Limited Warranty

---

Information:

E16 5th Wheel Hitch; Pivots on dual axes for 10 degrees of lateral movement; Automatically locks for easy, secure coupling; Operates using a single handle; Features an anti-rattle skid plate to help reduce noise; Compatible with kingpin extension boxes, including common pivoting pin boxes; Mounts to all industry-standard base rails; Offers four height adjustment positions to adapt to each unique truck bed; Tested for safety in accordance with SAE J2638; Protected by a highly durable carbide powder coat finish; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	16115 E16 5th Wheel Hitch, 16,000 lbs
